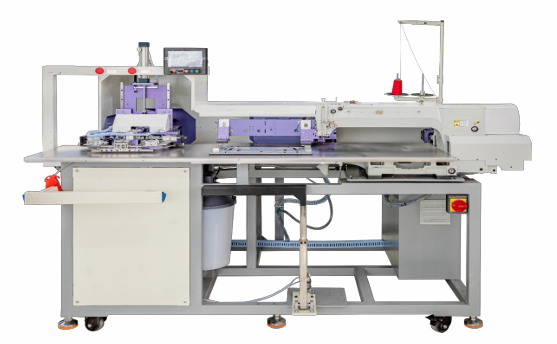

V-T5028ATP-KGP Automatic pocket setter for Kangaroo pocket
DESCRIPTION
1, The large-sized pattern machine head , with a sewing range of 50cm * 28cm. The sewing is precise, high-speed, stable, and easy to adjust.
2, Suitable for sewing hoodie kangaroo pockets, apron pockets, and can also be equipped with standard pocket patch technology devices .
FINISHED PRODUCT EFFECT
Specification:
1.Min pocket area: 45mm*45mm 2. Max pocket area: 500mm*280mm
3. Max speed: 3000RPM 4. Stitch length: 0.1-12.7mm
5. Pattern quantity in memory: 9999+USB memory 6. Production Capacity(per hour): 200~300pcs
7. Power: 220V 50/60Hz, 1.25KW
8. Air Pressure: 5 Bar 9. Air Consumption: 230L/min 10. N.W/ G/W: 540KG/ 540~550KG 11. Machine Size(L*W*H cm): L215*W145*H165cm 12. Package Size(L*W*H cm): L225*W160*H185cm
