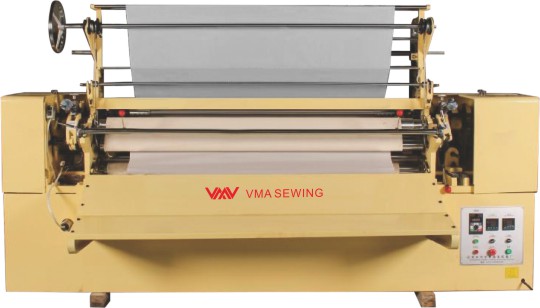

V-217D Pleating machine,computerized adjust design
Knives: one flat come on mach
DESCRIPTION
The V-217D skirt pleating machine is a highly versatile skirt pleating machine featuring a computerized adjustable design. It has a maximum press width of 1700mm and can produce pleats at speeds ranging from 20 to 150 pleats per minute. This skirt pleating machine offers adjustable pleat widths of 1-60mm and depths of 2-30mm, providing flexibility for various design requirements. Equipped with a 1.1kW motor and 11kW heating power, it ensures efficient and consistent pleating. The machine is fitted with one flat knife on the machine head, making it easy to operate while delivering high-quality pleating results.
SPECIFICATION
Max. press width:1700mm
Max, press speed:20-150pleat/minute
Pleat width:1mm-60mm
Pleat depth:2mm-30mm
Motor power:1.1kW
Heating power:11kW
Size:3200*1650*1750mm
Packing size:3400*1750*2000mm
Net weight: 1300kgs
Gross weight: 1650kgs
