V-T818ATS-4 Automatic snap button attach machine

Application:

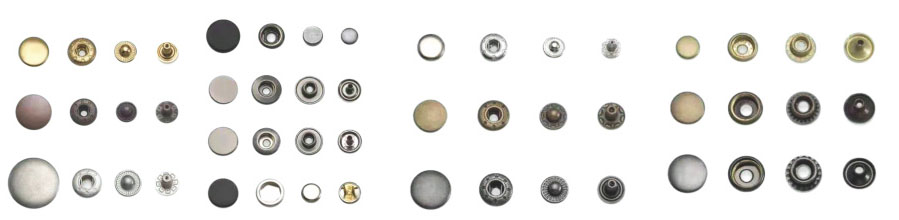

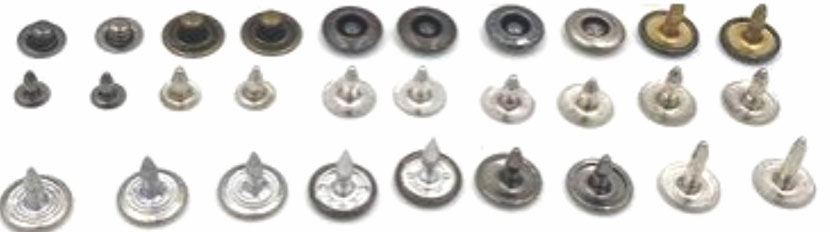

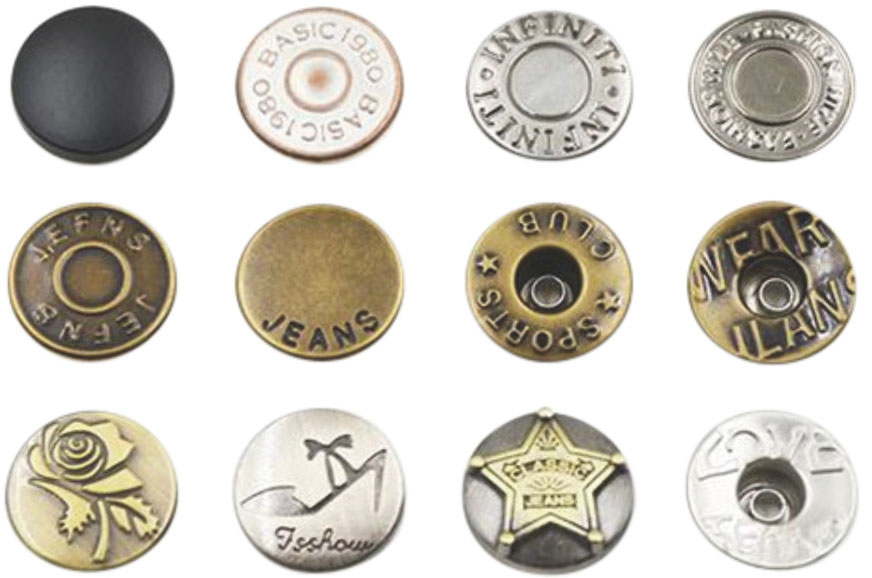

Suitable for all kinds of snap buttons.
A (top): Outer diameter: φ12-20mm / Thickness: 1.5-5.0mm
C (bottom): Outer diameter: φ9-11mm / Thickness: 0.2-1.5mm





Advantage：

With high working efficiency, 50-60pcs per minute，3-4 times faster than labor， other similar ones only
around 30pcs per minute.
Adopt the general mould of electric/pneumatic button attach machine, no need special mould. Also
convenient to replace top & bottom mould, other brand only top mould easy to change.
Use electric and touch screen interface, which is easy to operate.
The punching mould has high durability and vibration reduction.

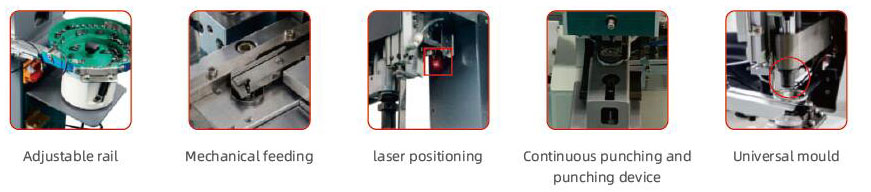

According to the size of button, the width and height of track can be adjusted easily.
Foot pedal controls feeding mechanism, feed up and down at the same time
With laser positioning, more precise and safe to operate.
When punching and riveting the buttons, moving back and front in a straight line to ensure the buttons
are concentric.
